How fast chargers move huge power safely

How do EV fast chargers push huge power without melting cables or cooking batteries? It is not magic: the charger, cable, plug, and car all negotiate limits in real time, and the battery itself decides how much it can safely take[2][4][5].

  • EVB 2 guns dc ev charger with liquid cooling a smart choice for commercial ev charging solutions 21INCH SCREEN
  • EV charging stations generate substantial amounts of heat and rely on liquid cooling technology to keep them running safely and efficiently.
🧵 1/5

Step 1, charger-to-car communication: EV connectors use signal pins like CP and PP, and higher-level protocols such as PLC, ISO 15118, and DIN 70121 carry the charging conversation for DC sessions[2][3].

  • protocols and standards for ev charging system
  • CCS Charging Standard - Driivz
🧵 2/5

Step 2, current and power limits: the charger advertises what it can supply, but the car only takes what its onboard limits allow. That is why an 800V EV can draw more power from the same current, while a 400V EV hits lower power for the same cable rating[12][20][28].

  • What is 800V Electric Vehicle? | What are the Benefits of 800V Systems?
  • 800V vs 400V EV Architecture: The Physics Behind the EV Architecture That Changes Everything
🧵 3/5

Step 3, keeping cables cool: fast charging creates heat, so many high-power systems use liquid-cooled cables and connectors, which let cables stay thinner and lighter while moving heat away efficiently[8][33][35].

  • Liquid-Cooled Ultra-Fast Charging

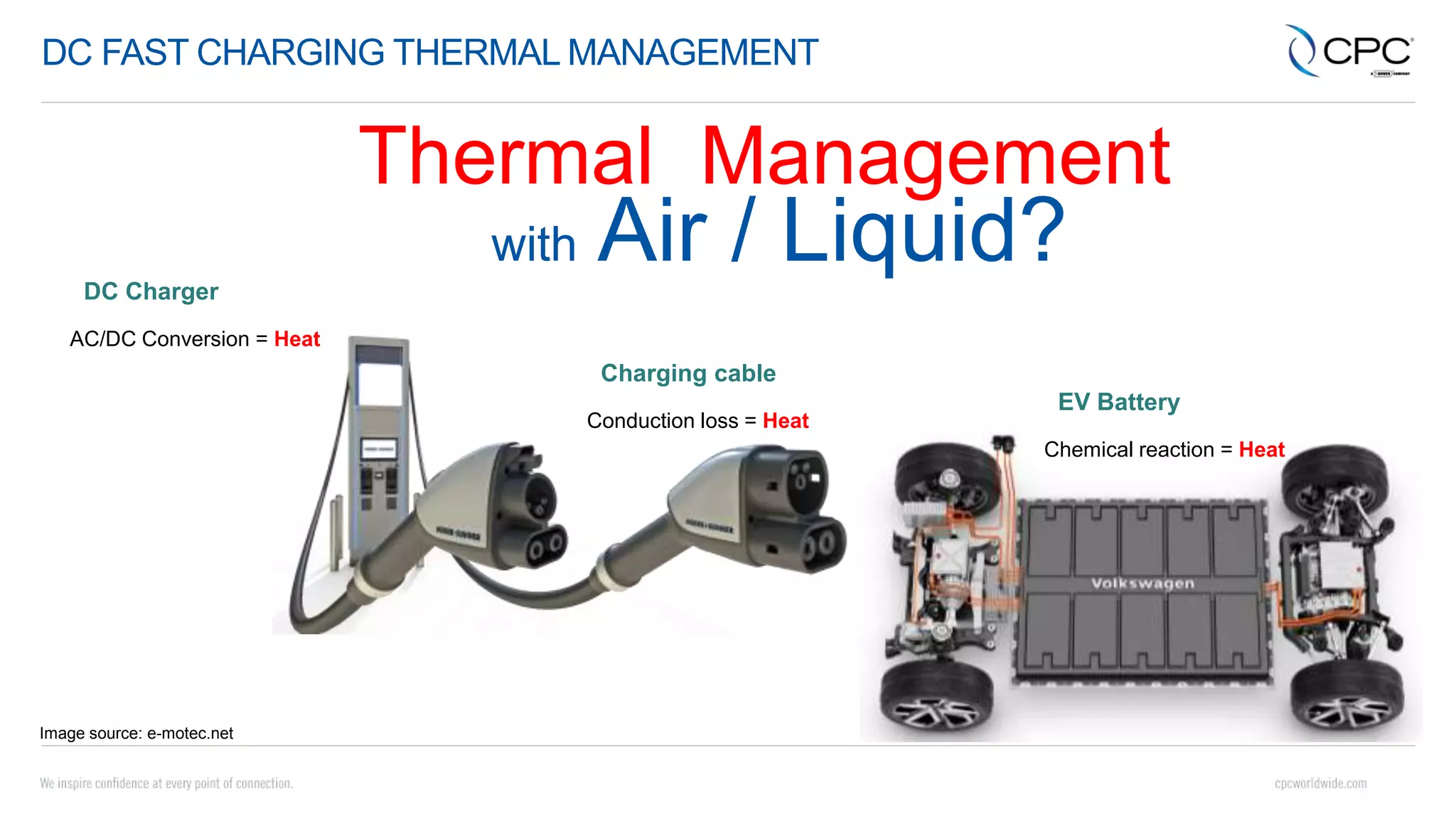

  • DC FAST CHARGING THERMAL MANAGEMENT Thermal Management DC Charger AC/DC Conversion = Heat Charging cable Conduction loss = Heat EV Battery Chemical reaction = Heat Image source: e-motec.net with Air / Liquid?
🧵 4/5

Step 4, protecting the battery: the BMS watches temperature, voltage, current, and state of charge, then tapers charging as the pack fills, because the last stretch is where cells are most stressed and charging naturally slows[11][13][19]. Simple mental model: fast charging is like pouring water into a bottle with a narrow neck, then gently turning down the tap near the top. 800V architecture makes the neck less restrictive by delivering the same power with less current, which means less heat and easier high-power charging[21][24][31].

  • EV Battery Management Systems
  • Optimizing the thermal management Ecosystem in EV batteries
🧵 5/5
